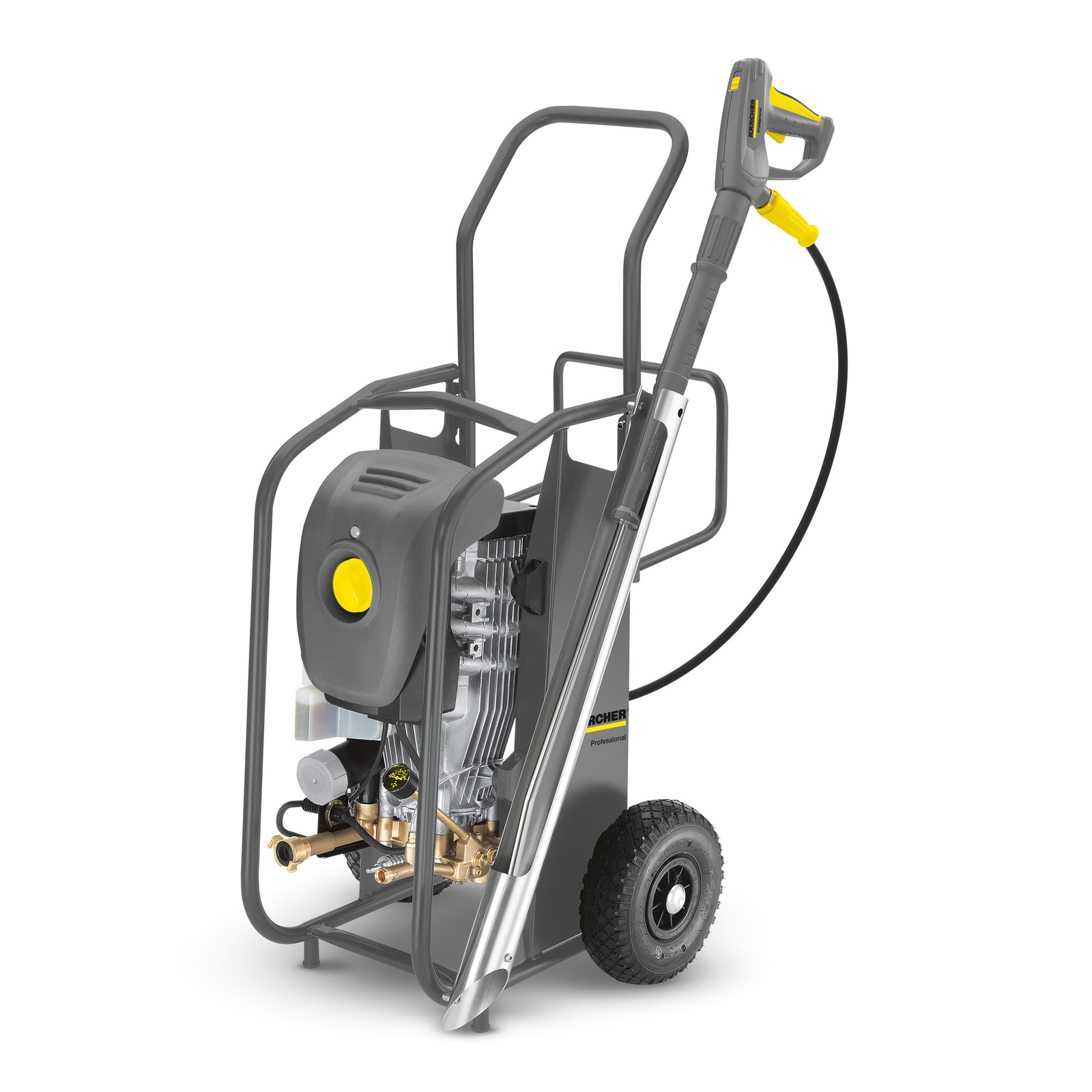

High pressure washer HD 10/25-4 Cage Plus

Quantity:

The HD 10/25-4 Cage Plus high-pressure cleaner with 250 bar pressure and rotary nozzle for combating stubborn dirt was specifically designed for the toughest operating conditions. Extremely robust thanks to the Cage frame.

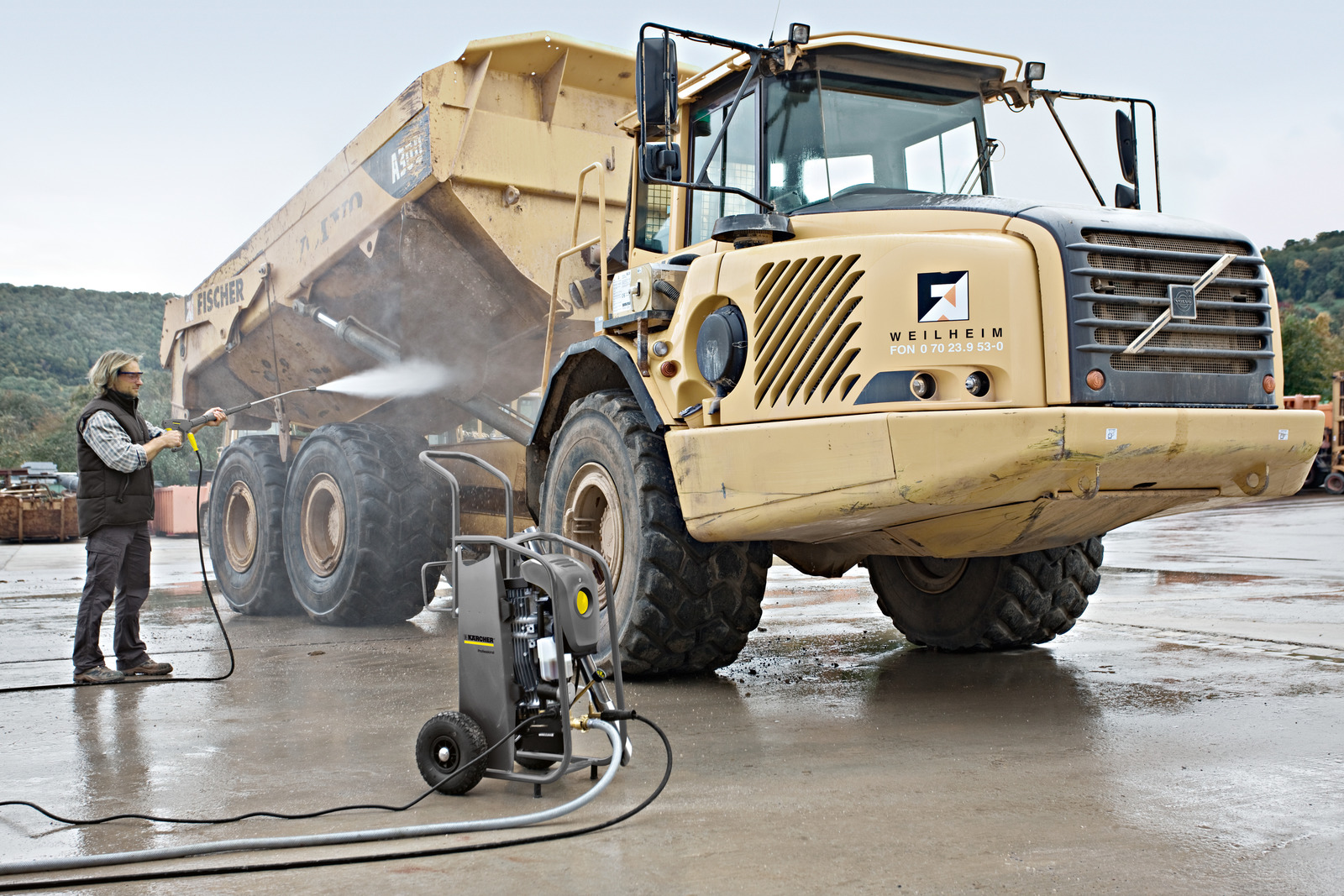

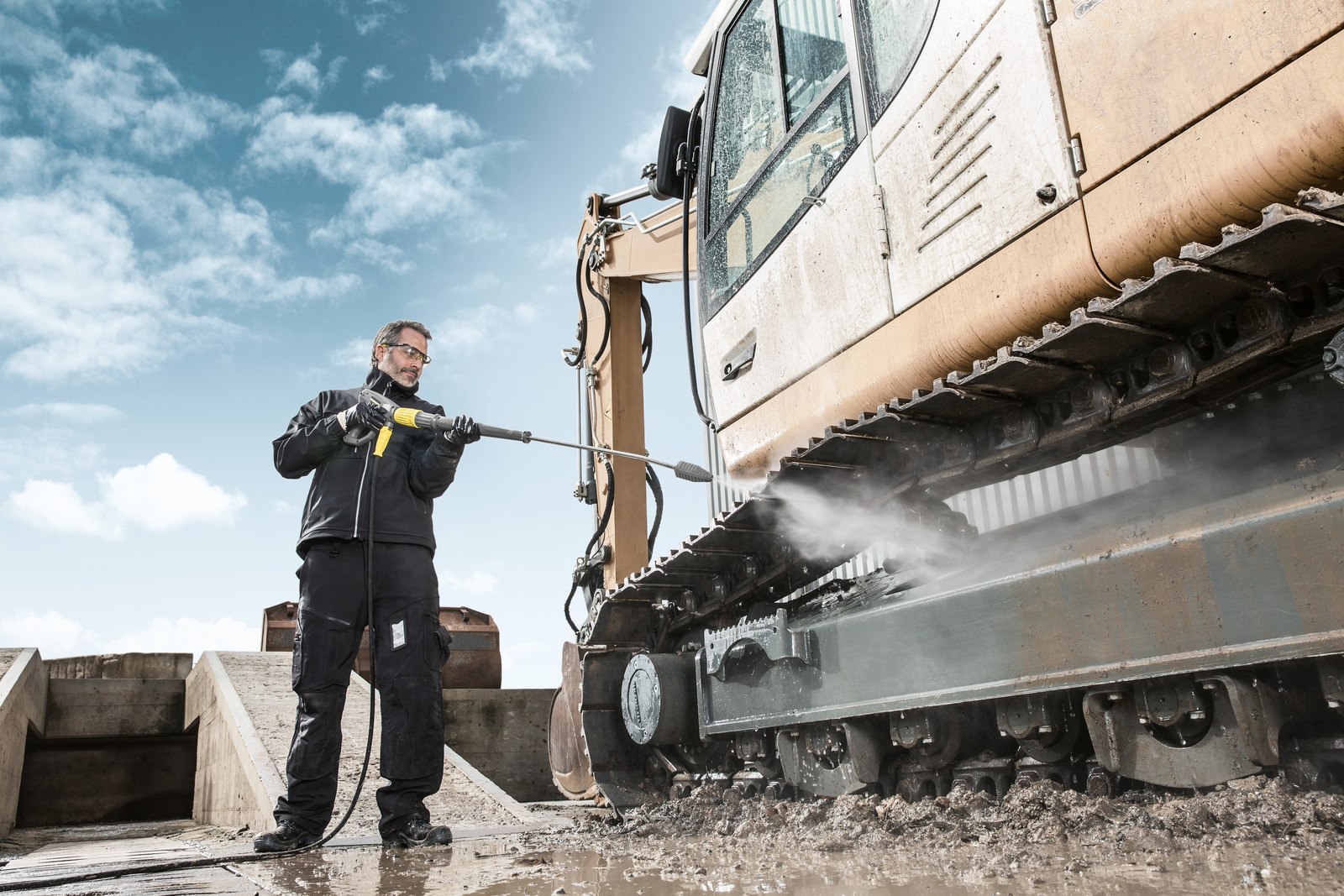

Our unheated HD 10/25-4 Cage Plus high-pressure cleaner makes light work of the toughest jobs on difficult terrain, particularly those in agriculture, construction or the municipal sector. This is made possible by the exceptionally robust pipe frame design, which on the one hand effectively prevents external damage and, on the other hand, guarantees service-friendly access to all important components. With a working pressure of 250 bar, a water flow of around 1,000 litres per hour and our innovative rotary nozzle, it can tackle even the toughest dirt. The EASY!Force high-pressure gun and patented EASY!Lock quick-release fasteners ensure that operating comfort is not overlooked: While the EASY!Force high-pressure gun makes use of the recoil force of the high-pressure jet to reduce the holding force to zero, the EASY!Lock quick-release fasteners enable handling that is five times faster than with conventional screw connections, without losing any robustness or longevity. Transport is made easy thanks to a useful crane hook located directly on the pipe frame.

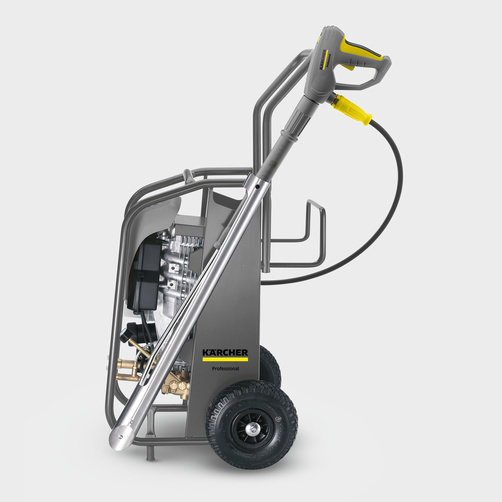

Powder-coated cage frame.
Ergonomic handle and hose storage. Protection against damage to the machine.

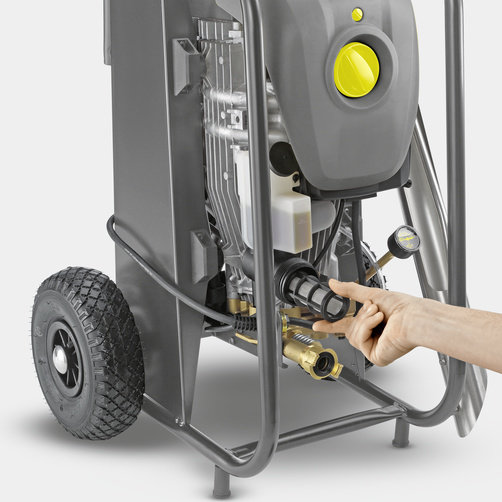

Water fine filter
Protects high-pressure pump from dirt ingress. Easy to use, easy to clean
Powerful and durable

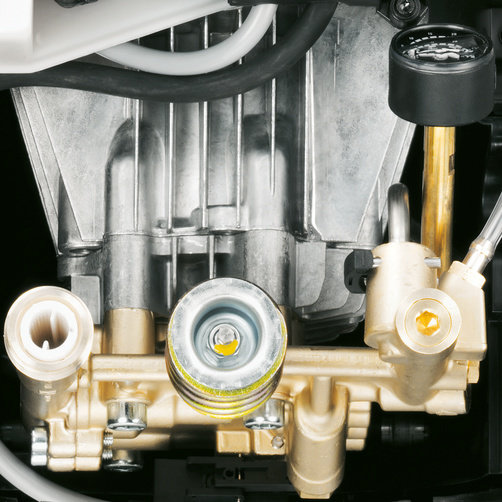

With its brass cylinder heads, the 3-piston axial-piston motor unit ensures an exceptionally long service life. 4-pole water-cooled electric motor. Ceramic-coated piston.

User-friendly operation

  • All service-relevant components are easily accessible.
  • Large wheels with pneumatic tyres, ideal for uneven surfaces.

Specifications

Technical data

Flow rate (l/h) max. 1000
Working pressure (bar/MPa) max. 250 / max. 25
Max. pressure (bar/MPa) 273 / 27.3
Connection load (kW) 9.2
Weight (with accessories) (kg) 57.4
Weight incl. packaging (kg) 67.3
Dimensions (L × W × H) (mm) 547 x 543 x 1104

Equipment

  • Spray gun, EASY!Force Advanced
  • High-pressure hose, 10 m
  • Spray lance, 1050 mm
  • Power nozzle
  • Dirt blaster
  • Pressure cut-off
  • High-pressure spray lance
