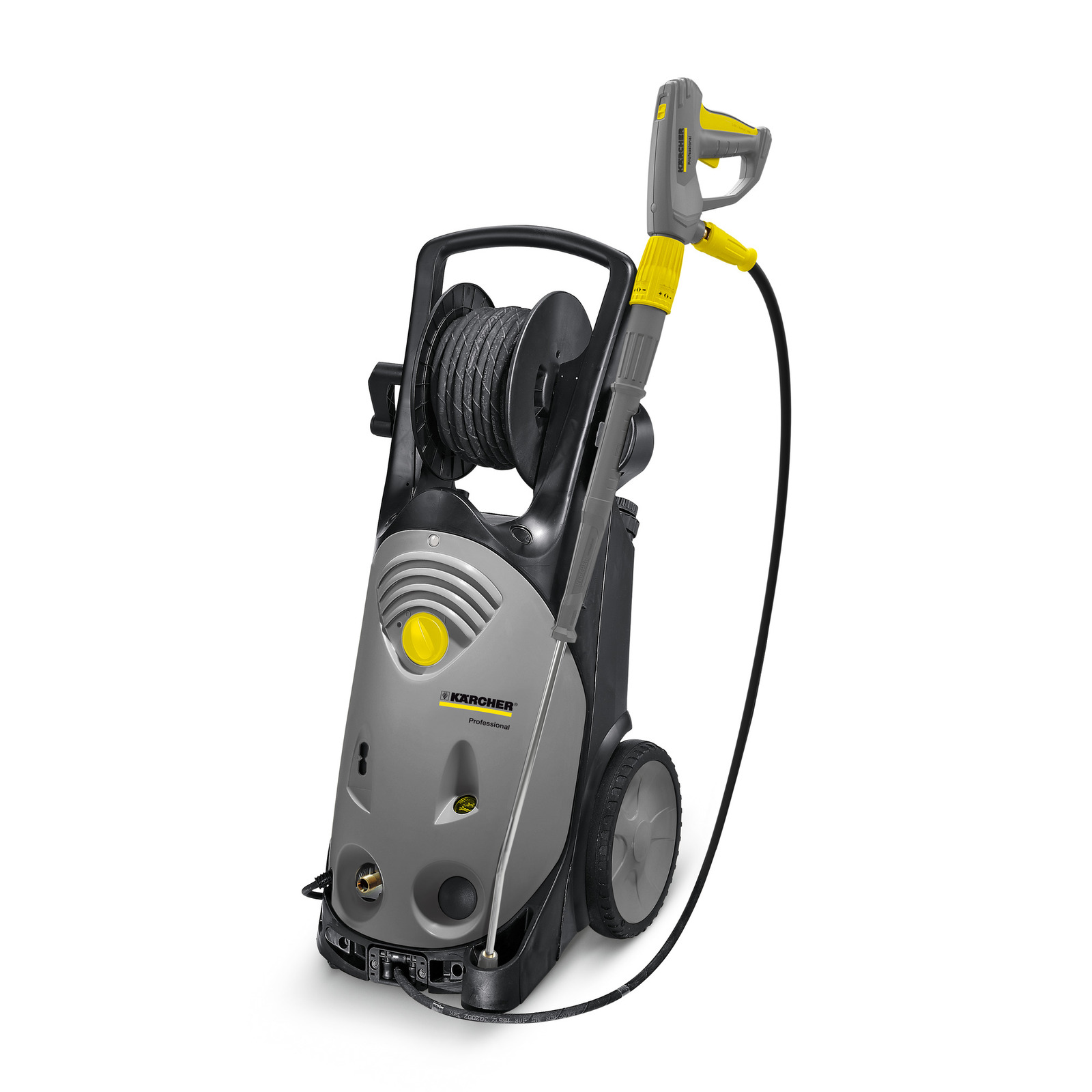

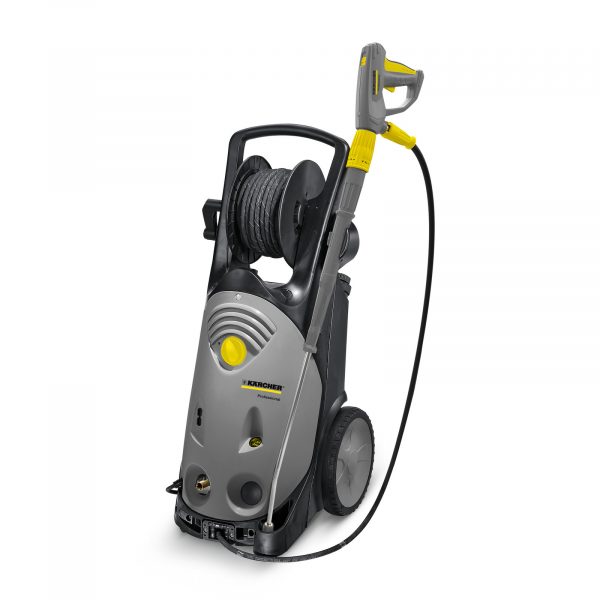

High pressure washer HD 17/14-4 SX Plus

Quantity:

Thanks to the EASY!Force high-pressure gun and Servo Control, the HD 17/14-4 SX Plus cold water high-pressure cleaner in an upright construction style offers a high level of working convenience.

Convenient operation – even under the toughest conditions: the HD 17/14-4 SX Plus cold water high-pressure cleaner with three-phase drive impresses with a wide range of sophisticated solutions. New innovations guarantee effortless operation and time-saving set-up and dismantling: While the EASY!Force high-pressure gun makes use of the recoil force of the high-pressure jet to reduce the holding force to zero, the EASY!Lock quick-release fasteners make handling five times faster than with conventional screw connections, without losing any robustness or longevity. With an outstanding washing performance, with a flow volume of 1,700 litres per hour (at a working pressure of 140 bar), it fulfills all the demands of powerful cleaning. Even at full power, the spray lance is still rotatable through 360°. The upright construction style means it is not just space-saving, it also gives the machine surprising agility and maneuverability over bumps and stairs, as well as on rough terrain. And last but not least, the HD 17/14-4 SX Plus is equipped with a pressure switch control, which switches the machine off when the trigger gun is no longer activated.
Save time and effort: EASY!Force high-pressure gun and EASY!Lock quick-release couplings.

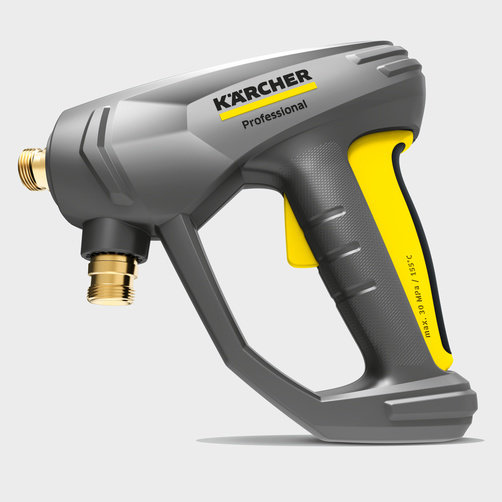

Effortless operation at last: the EASY!Force high-pressure gun. EASY!Lock quick-release couplings: durable and robust. And five times faster than screws.
Proven Kärcher quality

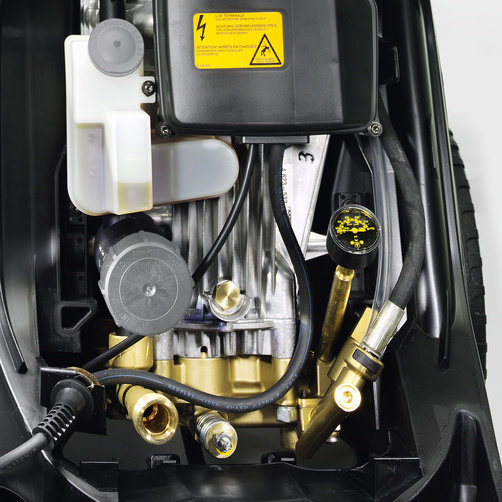

4-pole water-cooled electric motor. Robust brass cylinder head and ceramic piston. Reinforced, unbreakable plastic chassis.

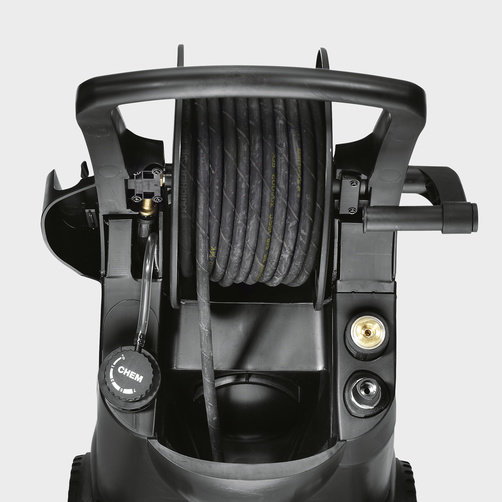

Hose storage
With bearings on both sides, for 20 m pressure hose. Hose guide passes under machine for high resistance to tipping. For fast, convenient fitting and removal.
For increased safety
  • Integrated electronics system for machine monitoring.
  • Automatic switch-off in case of low voltage range or over-voltage.
  • Switches off in case of leaks or phase failure.
Outstanding mobility
  • Large rubber wheels for negotiating uneven surfaces, stairs and landings.
  • Proven sack truck principle for easy, ergonomic transport.

Specifications

Technical data

Flow rate (l/h) 650 – 1700
Working pressure (bar/MPa) 30 – 140 / 3 – 14
Max. pressure (bar/MPa) 154 / 15.4
Connection load (kW) 9.4
Weight (with accessories) (kg) 76
Weight incl. packaging (kg) 82
Dimensions (L × W × H) (mm) 560 x 500 x 1090

Equipment

  • Spray gun, EASY!Force Advanced
  • Spray gun with soft grip
  • High-pressure hose, 15 m
  • Spray lance, 1050 mm
  • Power nozzle
  • Dirt blaster
  • Integrated pressure hose reel
  • 4-pole, three-phase motor with air and water cooling
  • Pressure cut-off
  • Integrated water fine filter
  • Electronic motor protection with LED display
  • Oil level indicator
  • Servo Control
  • Brass water inlet
