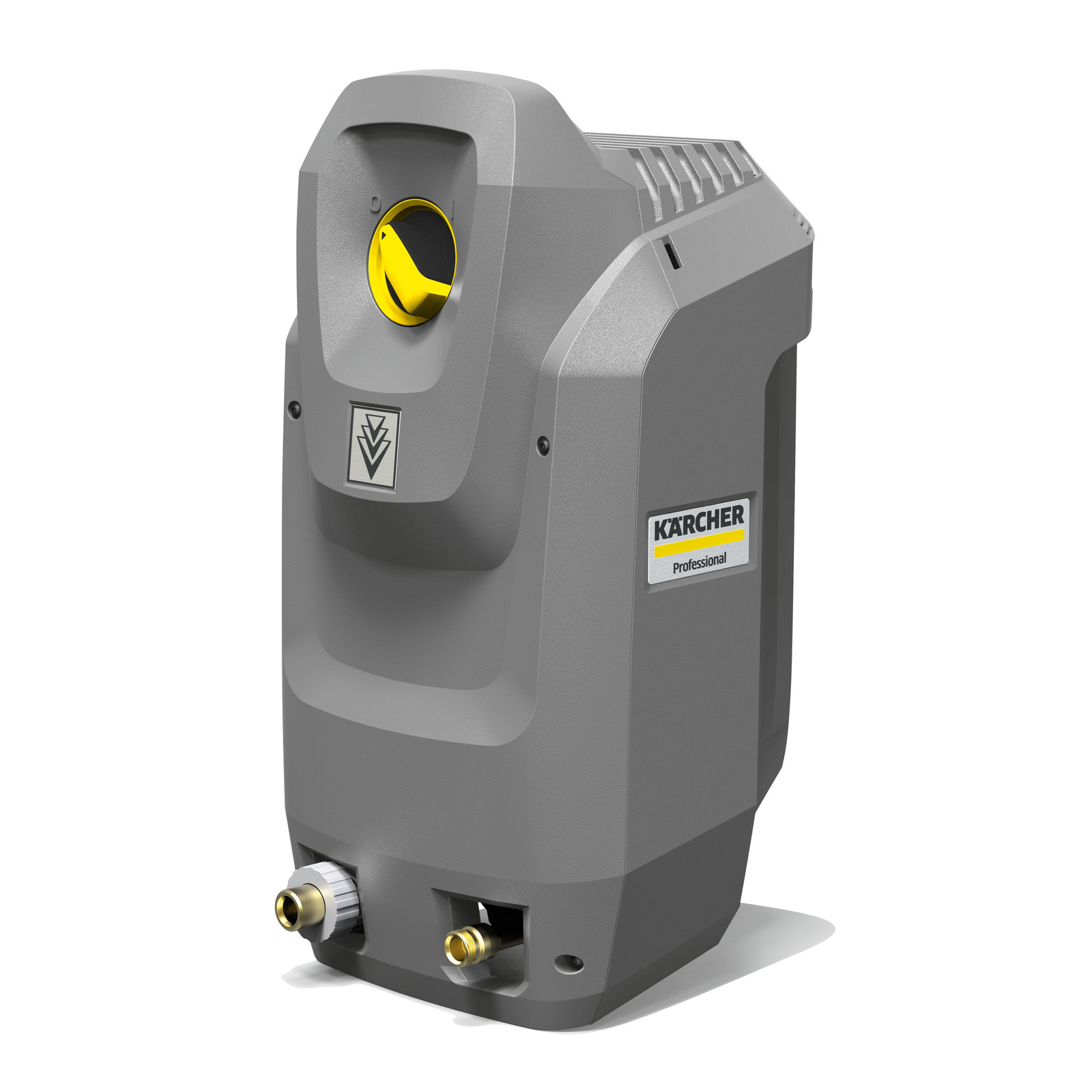

High pressure washer HD 8/18-4 M St

Quantity:

HD 8/18-4 M PU middle-class pump unit with robust 3-piston axial pump with brass cylinder head and 4-pole slow-running three-phase motor. Suitable for horizontal and vertical operation.

Our powerful HD 8/18-4 M PU motor/pump unit with robust 3-piston axial pump and brass cylinder head, 4-pole slow-running three-phase motor and pressure switch control impresses with up to 20% higher energy efficiency and cleaning performance. The stationary middle-class machine is designed both for vertical and horizontal use. The 3-point support on the back of the machine enables vertical wall mounting as well as horizontal installation. Easy access to the high-pressure pump, which is protected by a large water filter, and to the electronic components, is proof of the extremely maintenance-friendly machine design. Using the Servo Control function, the water volume and working pressure can be varied by selecting the corresponding nozzles. All high-pressure components are protected from loads in stand-by operation by the reliable automatic pressure relief feature.
High-quality equipment
Automatic pressure relief for protecting the components extends their service life. Powerful, 4-pole slow-running electric motor. High-quality brass cylinder head.
Flexible operation

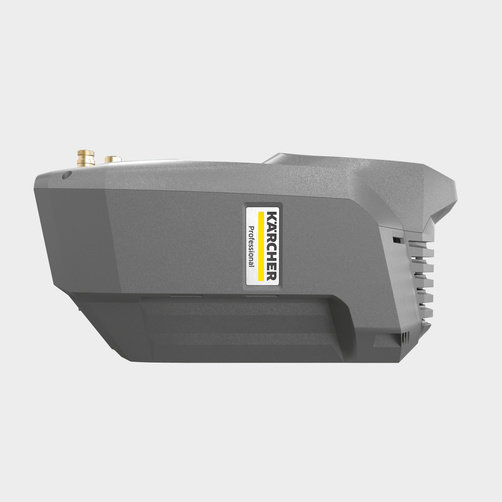

Designed for upright and horizontal operation.
Prepared for stationary operation

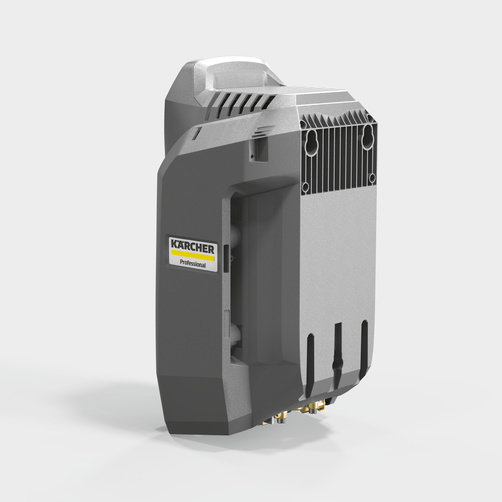

Simple and robust 3-point attachment for wall mounting on the rear of unit. Space-saving, compact design. Robust plastic chassis reliably protects the pump against damage and dirt.
Easy servicing

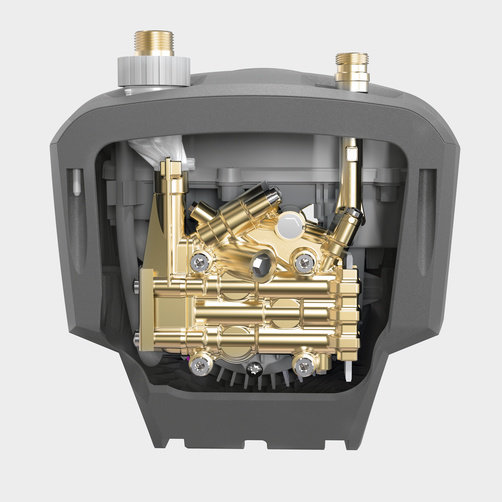

  • Easy access to the cylinder head when bottom of machine is opened.
  • Fast access to electrical box through simple removal of cover.
  • Large, easy-to-reach water fine filter for protecting the pump against dirt particles in the water.
Increased energy efficiency
  • Newly developed 3-piston axial pump with considerably reduced flow and pressure losses.
  • 20 percent increase in cleaning performance and energy efficiency.

Specifications

Technical data

Flow rate (l/h) 760
Working pressure (bar/MPa) 30 – 180 / 3 – 18
Max. pressure (bar/MPa) 270 / 27
Connection load (kW) 4.6
Power cable (m) 5
Weight (with accessories) (kg) 36
Weight incl. packaging (kg) 38.5
Dimensions (L × W × H) (mm) 290 x 300 x 565

Equipment

  • Pressure cut-off
  • Servo Control
