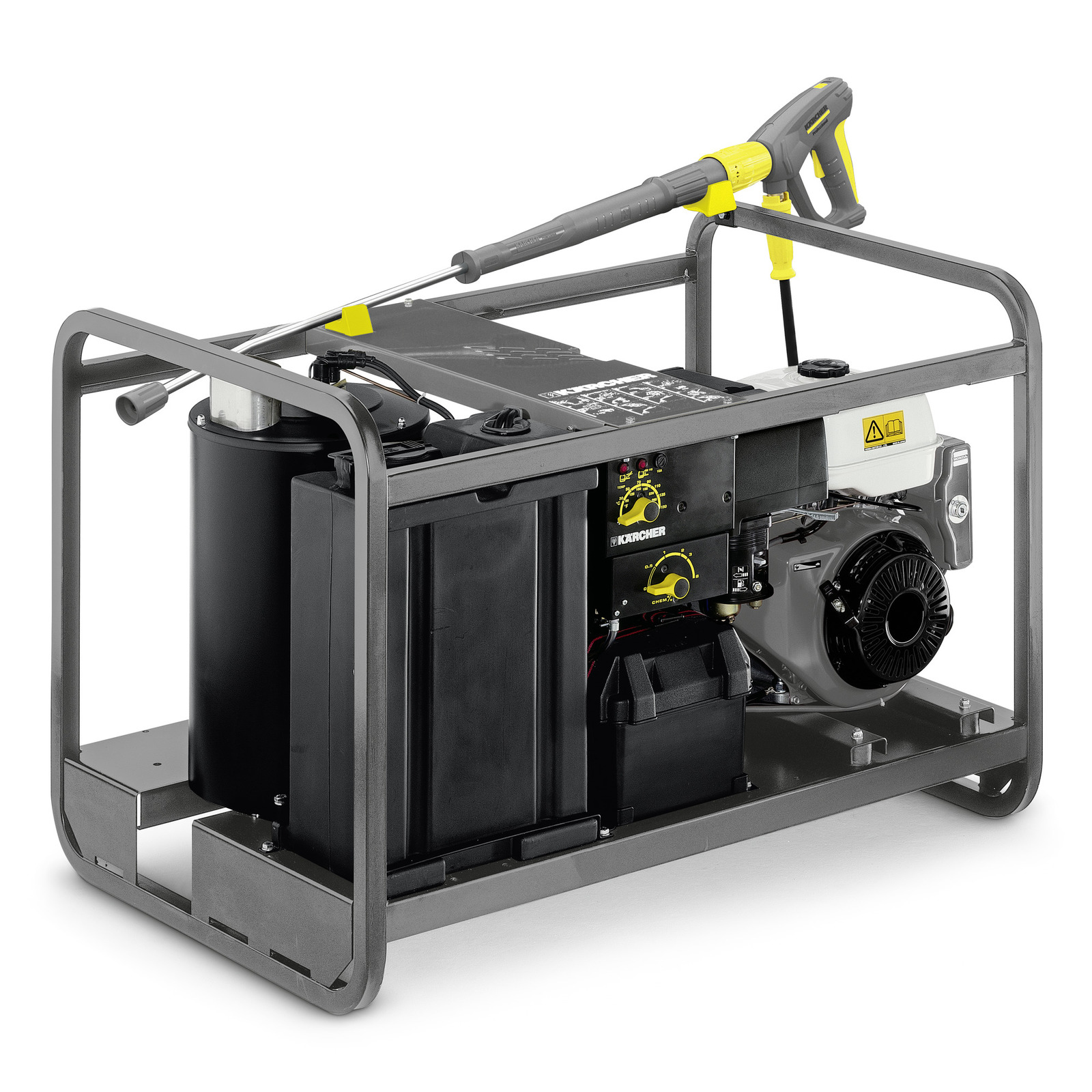

The pioneering EASY!Force high-pressure gun is part of the heated HDS 1000 De high-pressure cleaner’s standard equipment. Sturdy frame designed for crane or forklift loading.

Thanks to its abundant equipment features, powerful Yanmar diesel engine and sturdy pipe frame, our heated HDS 1000 De high-pressure cleaner can confront the challenges that other machines cannot. High-quality components – the high-pressure pump is fitted with a brass cylinder head, stainless steel valves and chrome-nickel-coated stainless steel pistons – ensure an extremely long service life even with tough, continuous use. Our new EASY!Force high-pressure gun, which makes use of the recoil force of the high-pressure jet to reduce the holding force to zero, ensures effortless operation, while our patented EASY!Lock quick-release fasteners make set-up and dismantling five times faster than with conventional screw connections, but are just as durable and robust. The comprehensive safety equipment, consisting of a float with integrated calcification protection (DGT) which ensures separation from the drinking water network, various safety valves, as well as oil, water and fuel shortage protection, guarantees the machine’s availability at all times. A robust frame protects the components and makes transport easier.

Optimum ease of use

Automatic burner cut-out in case of water shortage and overheating. The ergonomically designed spray gun reduces holding and pulling force.

Maximum performance

High-output burner with upright heating coil and detonation-free continuous ignition. For removing stubborn encrustations. Two integrated diesel and petrol tanks allow long run times.

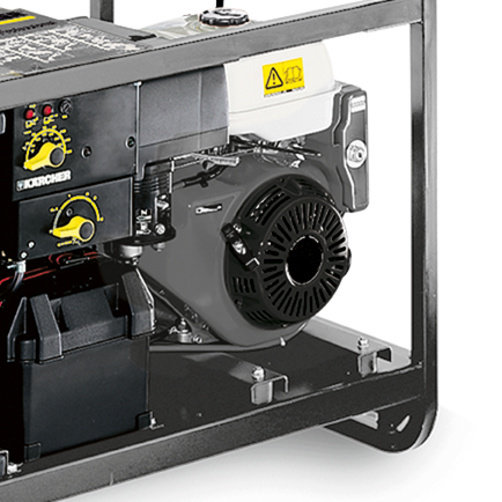

Economical, diesel-powered combustion engine

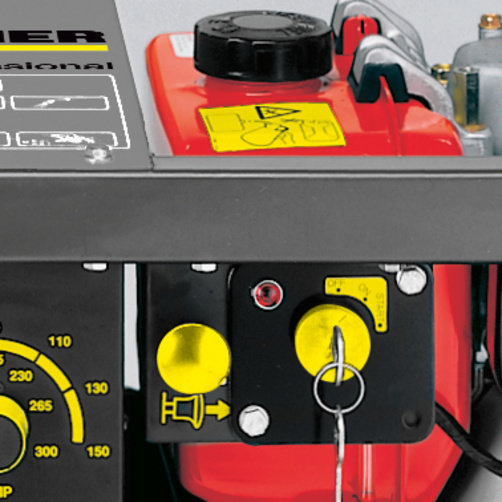

Complies with the requirements of exhaust emissions standard EU STAGE V. Electro start for effortless starting.

User-friendly operation

• The speed is automatically reduced in standby mode. This protects the engine and saves energy.
• Crane loading possible thanks to the sturdy tubular steel frame.

Specifications

Technical data

Flow rate (l/h)	450 / 900
Working pressure (bar/MPa)	40 / 200 / 4 / 20
Temperature (supply 12°C) (°C)	80 / 98
Heating oil or gas consumption, full load (kg/h)	5.6
Fuel tank (l)	34
Motor type	L 100 V / Diesel
Engine manufacturer	Yanmar
Weight (with accessories) (kg)	188.3
Weight incl. packaging (kg)	194.1
Dimensions (L × W × H) (mm)	1100 / 750 / 785

Equipment

• Spray gun, EASY!Force Advanced
• Spray gun
• High-pressure hose, 15 m
• Spray lance, 1050 mm
• Cage frame
• Electro start
• Power nozzle
• Servo Control
• sturdy tubular steel frame for handling with crane
• Motor, Diesel
